Locinox Venus Pedestrian Gate Operator, 100kg

Venus is an all-in-one motorised gate closer for pedestrian swing gates.
VENUS's push-and-go feature allows for easy activation with a gentle push, automatically opening and closing the gate afterward. Perfect for when your hands are full or you can't apply much force.

Ideal for wheelchair access, VENUS adjusts with variable waiting and closing times.
See the Venus Functions video (below) for an overview of the opening functions.

Thanks to its integrated obstacle detection feature, the VENUS will reopen the gate and ensure it is fully closed only when everything and everyone has safely passed through.

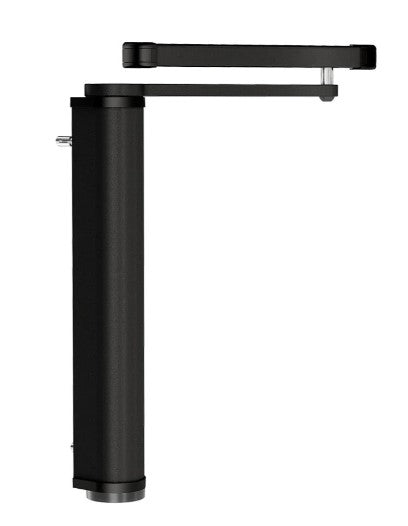

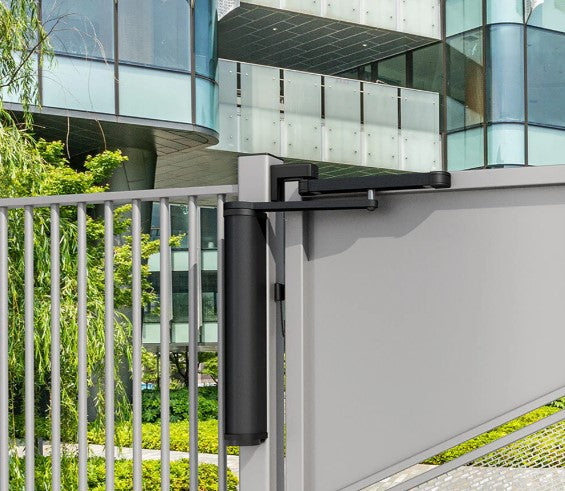

The compact gate operator with built-in controller can easily be installed on any type of post and hinge thanks to three different arm types.

The Venus motorised gate operator features include:

3 Output connectors

• Electric lock
• Courtesy light
• External Flashlight
• Aux 24V

3 Input connectors

• Control device
• Safety device

Motion settings

• Push/Pull and Go (On/Off)
• Pause time (default = 5s)
• Number of retries after collision (default = 3)

Light settings

• Courtesy light timer (default = 30s)
• Pre-flash time (default = 0s)
• Flashlight brightness (High/Low/Off)
• Warning ON during pause time (default = Off)


Specifications

• Pedestrian gates to 1400 mm wide and 100 kg
• Integrated warning light
• Automated obstacle detection with reverse function
• Reversible motor for easy manual use - combined with a lock
• Integrated electronics (compact design without add-on boxes)
• Input power supply: 115V AC ±10% (60Hz) to 230V AC ±10% (50Hz)
• Motor: Brushless 24V DC
• 150 Nm torque

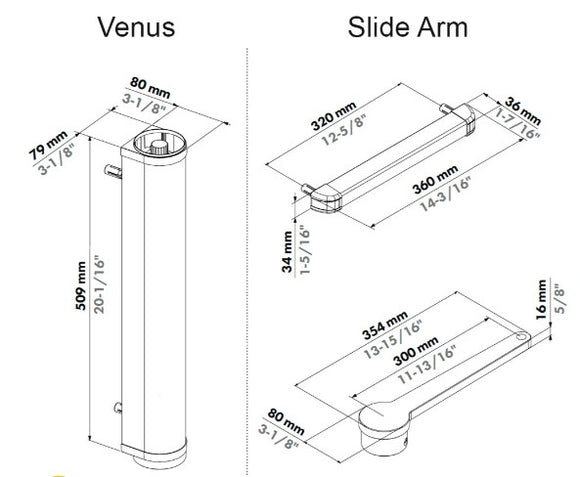

• Fits 80 mm profiles (60mm with Venus adaptor plate)
• Steel gear box
• Anodised aluminium cover
• 2 different arm options for installation
• Easy mounting with Quick-Fix
• Compact and vandal-proof design
