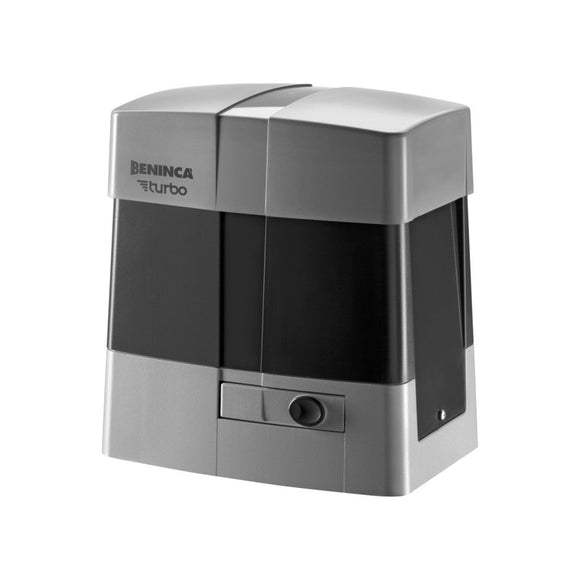

Light Commercial BENINCA BULL1224 TURBO Sliding Gate Motor - 1200KGs 24V DC

Light Commercial BENINCA BULL1224 TURBO Sliding Gate Motor - 1200KGs 24V DC

Make Enquiry

SKU: BULL1224Turbo

Fast 24v DC oil geared motor with integrated controller designed for intensive use.

Its application covers residential and commercial use on gates up to 1200 kg.

Key features.

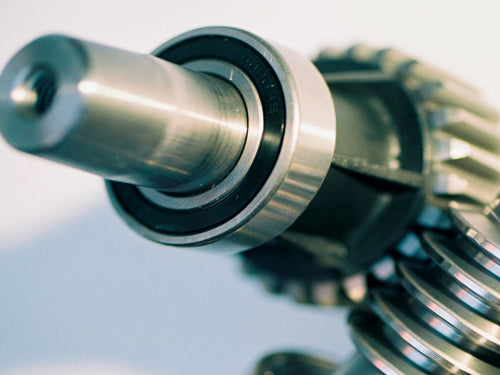

Increased speed and performance - High speed 24m/min operating speed allows you to get off the road and into your driveway faster and safer than ever before. Oil bathed gearing reduces friction and heat generation from the motor resulting in a higher duty cycle and a longer life span.

Advanced PCB (top mounted) - New control panel with the switching transformer for a supply of 195 to 265 Vac 50Hz. The control panel is installed above the motor for more comfortable wiring and programming. All parameters and logic are set up using the LCD display and buttons.

Built in battery back-up charger - Built in battery backup charger, so just add batteries for 24v operational battery back-up.

New quick programming function - You can quickly set the motor parameters using the ‘auto-set’ function. This will learn the length and weight of the gate and automatically adjust the torque and safety parameters.

Virtual encoder and STC system - The BULL Turbo series motors are equipped with a virtual encoder which ensures the best safety and optimal management of the slowdown phases with the possibility to track it using the STC system.

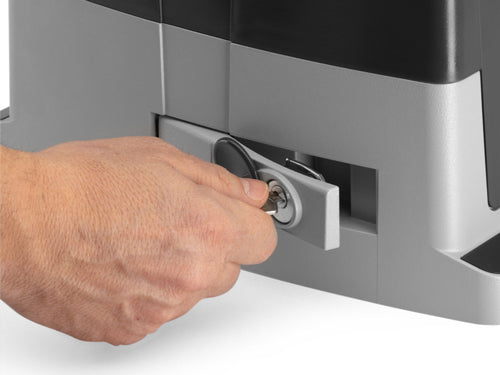

Advanced safety features - Manual release mechanism fitted with a motor cut out and safety sensor for optimum safety during maintenance.

KNX integration - Ready for the connection of the X.BE accessory for integration with KNX Domotica System.

Technical specification:

  • A built-in radio receiver which allows up to 512 transmitters to be coded
  • Switchmode power supply 195 – 265 Vac 50hz

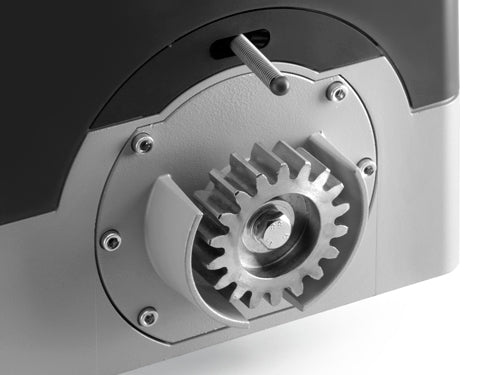

  • Standard M4 z18 (mod 4) drive rack
  • Built-in battery back up, space and housing to just add batteries
  • Intensive duty cycle – up to 120 cycles per hour

Download specification sheet here.

Please, contact us for more information about BULL1224 TURBO.
