DD TECH SHUTIT BADASS BABY HINGE

Indent item Average dispatch time ~ 22 days

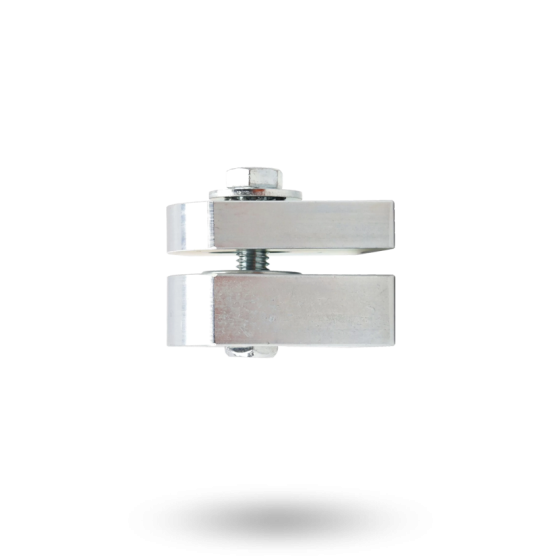

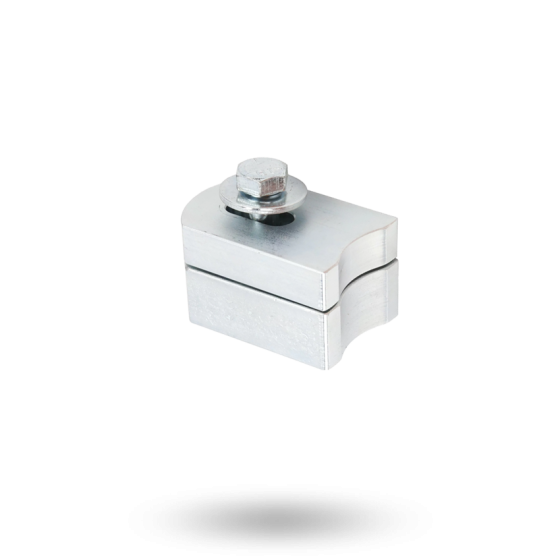

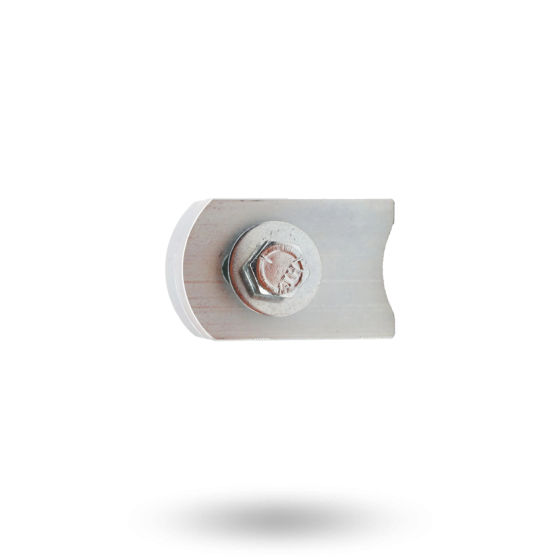

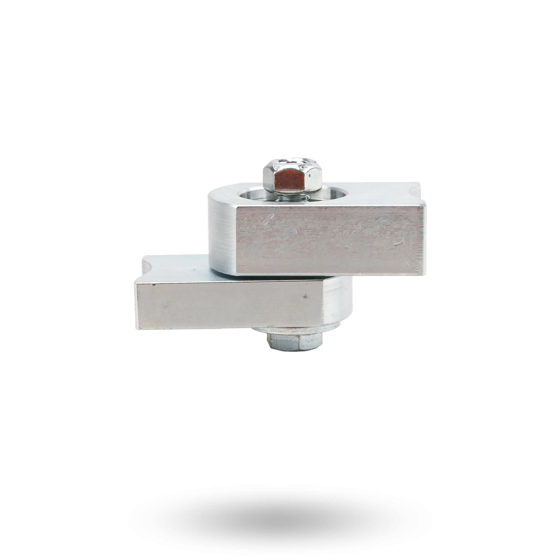

D&D Shut It® BadAss™ Baby Hinge

Made with the same D&D Shut It® BadAss™ technology as our BIG hinges, but designed for the lighter side, The D&D Shut It® BadAss™ Baby models are the perfect gate hinge for high-end pedestrian gates and low usage drive entry gates that are welded to steel end posts in the field. The D&D Shut It® BadAss™ Baby models are ideal for both flat and round post installations.

Available in Steel (CI3600), Rusted (CI3620), Aluminium (CI3650) and Steel/Aluminium Combo (CI3670)

Features

• Steel body gate hinge with a zinc plated finish
• Steel yoke
• Slotted for easy adjustment
• Concave design makes welding to flat or round surfaces easier
• Lighter gate weight option to Original BadAss
• One sealed maintenance free bearing (no greasing)
• Up to 13mm of horizontal adjustment
• Ideal for square or round post installations
• Load rating per gate 230kg
• Maximum gate weight140kg
• Supplied in trade pack - 1 each

Specifications

• Gate Application: Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
• Gate Type: Non Self-Closing
• Gate Material: Aluminium, Steel/Ornamental Iron
• Approximate Gate Height: 2000mm
• Approximate Gate Width: 3000mm
• Gate Frame/Post Shape: Square-to-Square, Square-to-Round
• Minimum Post Size: 38mm+
• Ideal Gate Gap: 64mm to 76mm
• Fixing Method: Weld-On

Finish
Zinc
