DD TECH SHUTIT BADASS FACE MOUNTING WELD-ON HINGE

Indent item Average dispatch time ~ 22 days

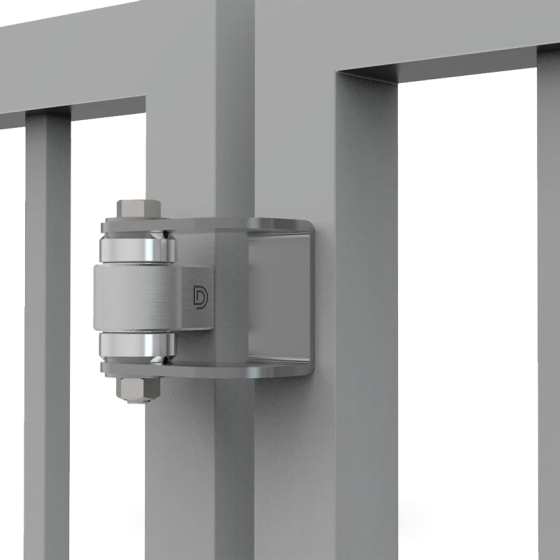

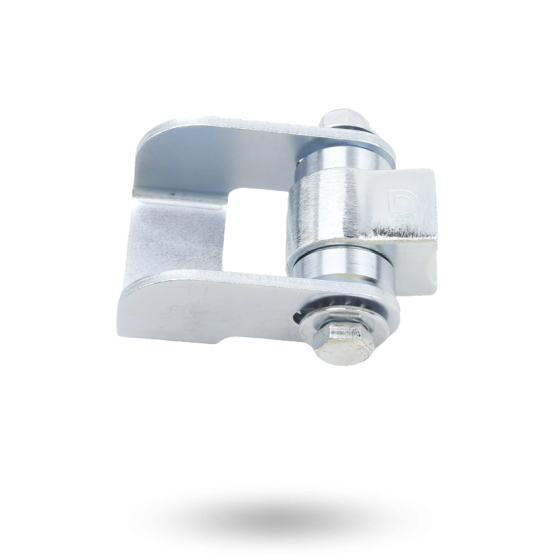

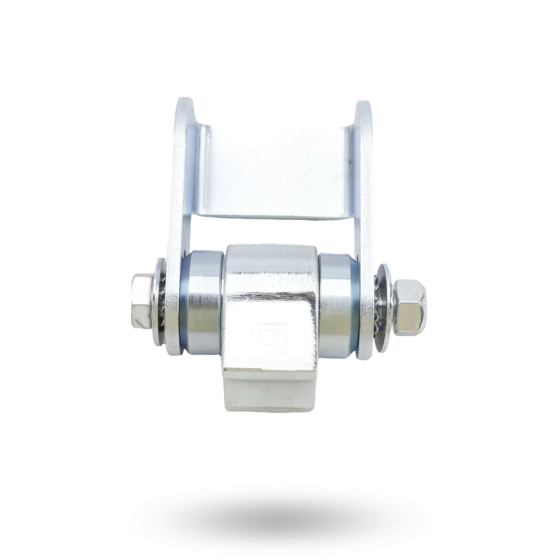

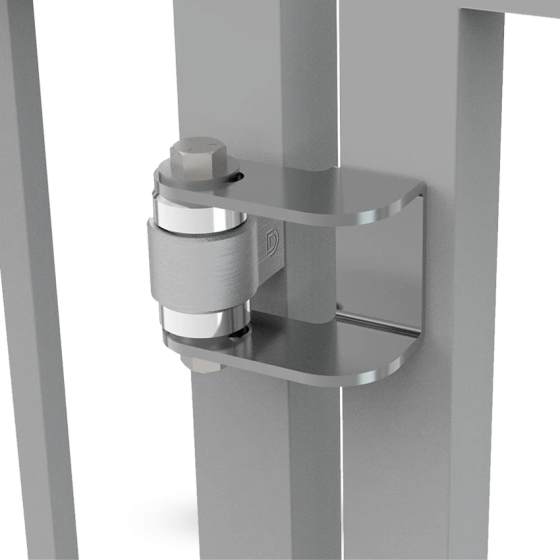

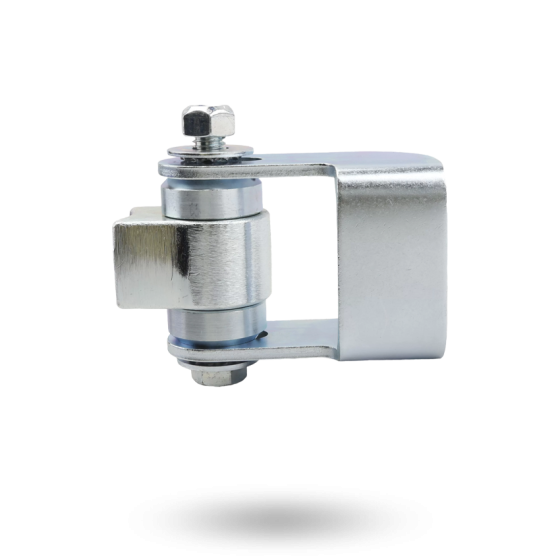

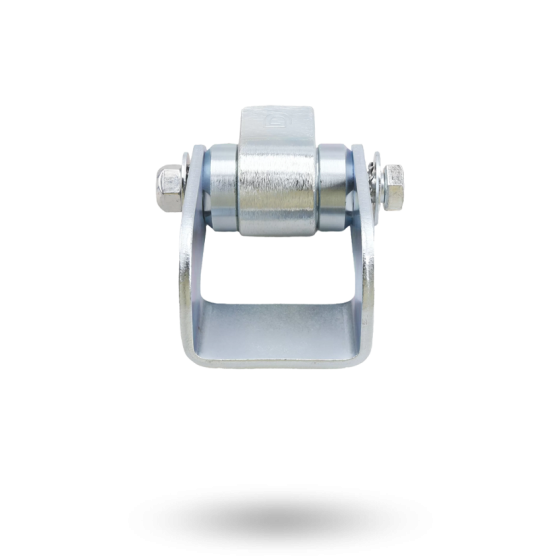

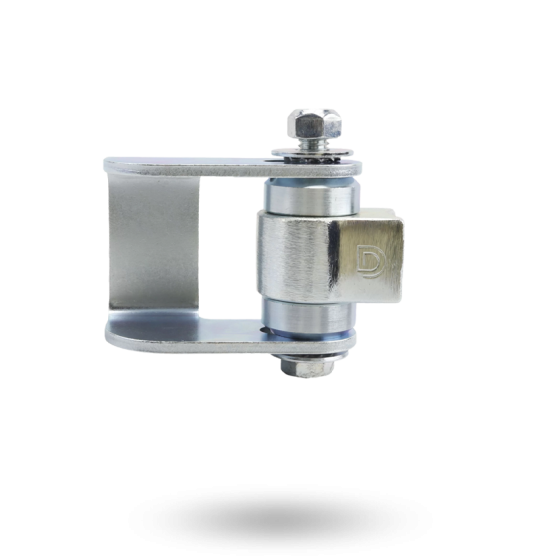

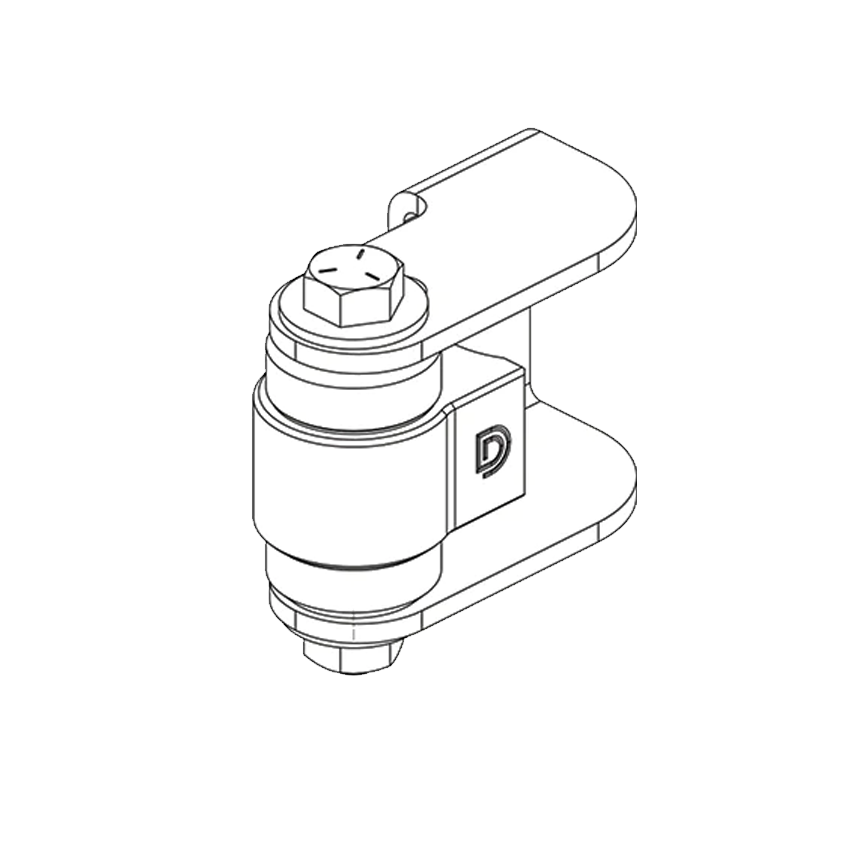

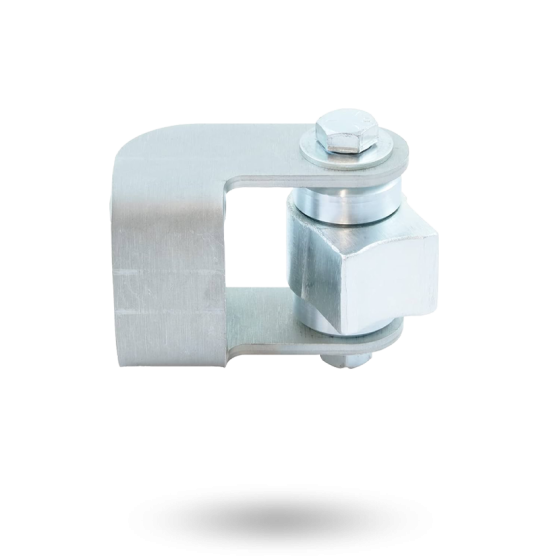

D&D Shut It® BadAss™ Face Mount Weld On Hinge

The D&D SHUT IT™ BadAss Face Mount gate hinges are manufactured with the industry’s first maintenance-free high-temperature sealed bearings, which are safe to powder coat with the hinges installed on the gate. The D&D SHUT IT™BadAss Face Mount opens to a full 180º for optimum opening angle and is available in bolt-on or weld-on models. They are horizontally adjustable for perfect installations and to allow proper gate movement, and the adjustability enables gate gaps as small as 13mm. Zinc electroplating construction leads to long lasting rust and corrosion protection. D&D Shut It™ hinges have been tested to over 1 Million open / close cycles and feature a limited lifetime warranty.

Features

• Opens to 180°
• Achieve gate gaps as small as 13mm
• Horizontally adjustable to 13mm
• Both weld-on and bolt-on models available
• High-temp bearings, safe to powder-coat
• Load rating per gate 900kg
• Maximum gate weight 500kg
• Supplied in trade pack - 1 each

Specifications

• Gate Application Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
• Gate Type Non Self-Closing
• Gate Material Steel/Ornamental Iron
• Approximate Gate Height: 2000mm
• Approximate Gate Width: 3000mm
• Gate Frame/Post Shape Square-to-Square
• Minimum Post Size 38mm+
• Ideal Gate Gap 74mm to 86mm
• Fixing Method Weld-on

Finish
Zinc
