DD TECH SHUTIT BADASS STEEL TO STEEL BOLT-ON HINGE BLACK POWERED COATED

D&D SHUT IT™ BOLT-ON BADASS

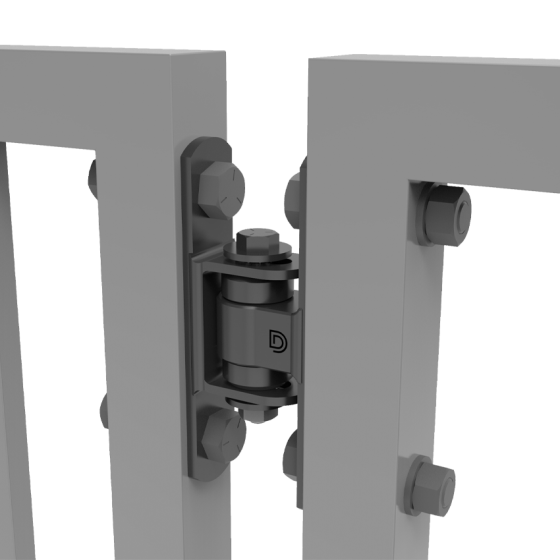

The D&D Shut It® BadAss™ Bolt-On Hinge was designed to be used on gates where welding the hinges to the gate and the end post is not an option. Due to the D&D Shut It® BadAss™ unique bushing design The D&D Shut It® BadAss™ Bolt-On Hinges, like all other D&D Shut It® BadAss™ gate hinges, produces near frictionless movement with maintenance free usage.

Designed for gates where welding is not an option

Unique Stover Locknut™
an innovative, shaped threads provide a vibration-resistant friction fit so nut stays firm. The top thread section is deformed to create two or three locking zones (can be re-used 2-3 times). The all-metal locknuts withstand higher temperatures than nylon-insert locknuts.

High Temperature Sealed Bearings
Safe to powder-coat with hinges installed on the gate (excluding CI3850 self-closing hinge and CI3800 Stainless Steel BadAss). No greasing, no maintenance; hinge options include 1, 2, 3 or 4 bearings and performs better than roller cages that require periodic greasing.

Features

• Two sealed maintenance free bearings
• Horizontally adjustable
• Adjustable barrel for precise installations
• Flat, bolt-on brackets for through bolting
• Powdercoated plated steel
• Load rating per gate: 900kg (2,000 lbs)
• Maximum gate weight: 450kg (1,000 lbs)
• Steel body and bracket
• Hinge weight 1.6kg
• Supplied in trade pack - 1 each

Specifications

• Gate Application: Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
• Gate Type: Non Self-Closing
• Gate Material: Steel or Ornamental Iron
• Approximate Gate Width 2000mm
• Approximate Gate Height 3000mm
• Gate Frame/Post Shape: Square-to-Square
• Minimum Post Size: 38mm+
• Ideal Gate Gap: 74mm to 86mm
• Fixing Method: Bolt-On

Finish
Black
